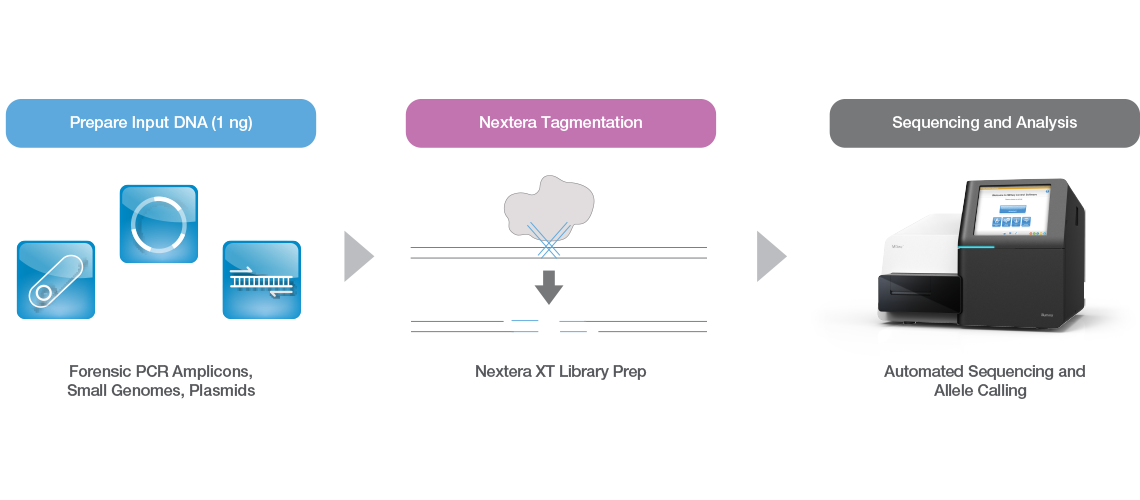

借助 Nextera 技术,DNA 在单管酶促反应中同时被片段化并用测序接头进行标记。 Nextera XT 支持仅 1 ng 的超低 DNA 输入量。它支持广泛的输入样本,包括小基因组、大于 300 bp 的 PCR 扩增子、质粒、微生物基因组、串联扩增子和双链 cDNA。
每个 Nextera XT 库可复用多达 384 个样本,可用于需要更高通量的项目。此外,该试剂盒包括创新的基于微珠的样品标准化,无需在合并和测序之前对文库进行量化。使用 Nextera XT 试剂盒制备的文库与所有 Illumina 测序仪兼容。
用于 Illumina-Nextera DNA UD 索引集 A、B、C 和 D 索引的 IDT 提供多达 384 个独特的双索引,允许准确分配读取和高效使用流动槽。这些独特的双索引代码使用 10 bp 代码。碱基对索引代码的这种变化需要对测序运行设置进行调整。
该产品也可作为 Illumina Advantage (TG) 产品。Illumina Advantage大规模测序产品具有特定批次出货和测试、延长货架寿命和先进的变更通知,以提高实验室效率。

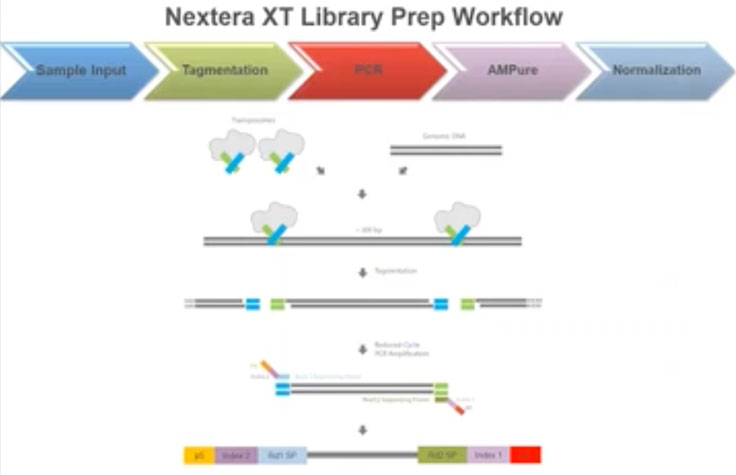

快速、自动化友好的工作流程
在不到一天的时间内准备好Illumina测序库。Illumina合格方法可通过我们的 合作伙伴在一系列自动化平台上使用。

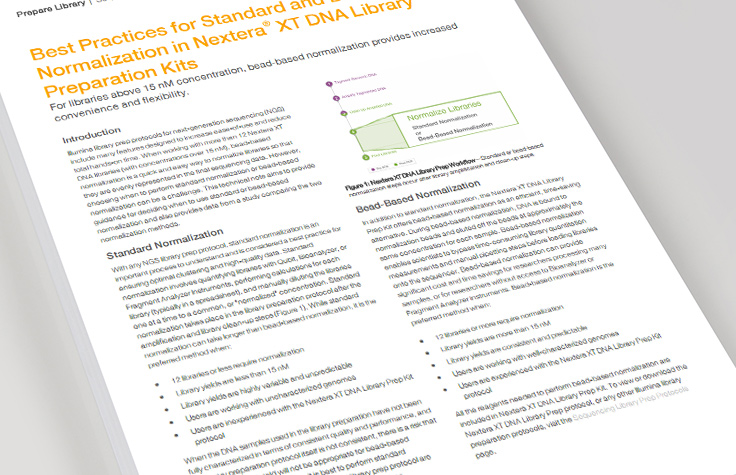

对于高通量研究,基于磁珠的标准化可以提供从 DNA 到数据的加速路径,从而节省时间和资源。本技术说明提供了两种规范化方法的比较指南和数据,以帮助您决定使用哪个选项。
阅读技术说明仪器 | 推荐的样本数 | 读长 |
---|---|---|
MiSeq System | Up to 384 samples per run | Up to 2 x 300 bp |
NextSeq 550 System | Up to 384 samples per run | Up to 2 x 150 bp |
Genomic studies with the HiSeq and MiSeq Systems are enabling researchers to track Ebola outbreaks and understand the impact of the virus’s rapid mutation rate.
Read MoreSequencing the Rapidly Evolving Influenza A Virus on the MiSeq System
Application Note | PDF < 1 MB
Nextera Library Validation and Cluster Density Optimization
Technical Note | PDF < 1 MB
Technical Note | PDF < 1 MB
Nextera XT Library Prep: Tips and Troubleshooting
Technical Note | PDF < 1 MB

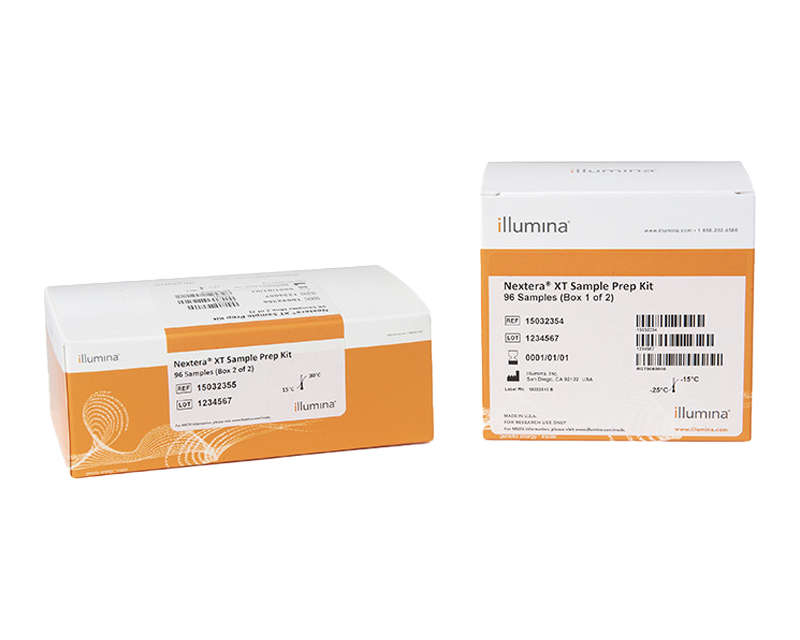

Nextera XT DNA Library Preparation Kit
Data Sheet | PDF < 1 MB
Nextera XT DNA Library Prep Kit Documentation
Nextera XT DNA Library Prep Kit Consumables & Equipment List Documentation
Nextera XT DNA Library Prep Product Documentation
Illumina Experiment Manager User Guide Documentation
Index Adapters Pooling Guide Documentation
Nextera XT DNA Library Prep Kit Checklist Documentation
自定义协议选择器
Generates customized, end-to-end instructions
